Conductive coatings are one of those technologies that, although you may not always notice them, play a crucial role in many of the devices and systems we rely on every day. Whether you're looking to improve the performance of your electronics, manage electromagnetic interference, or protect against electrostatic discharge, conductive coatings are a key player.
What are conductive coatings?
Conductive coatings are thin layers of material applied to surfaces that help conduct electricity. The goal of a conductive coating is to enable the surface to either conduct electrical current or shield against unwanted electrical interference like electromagnetic interference (EMI) or radio frequency interference (RFI).
You can find conductive coatings in many different industries, from electronics and automotive to aerospace and telecommunications. They are used to enhance the functionality of products by controlling the flow of electrical signals, preventing electrical damage, or providing protection from environmental factors like static electricity.
How conductive coatings can be used
Conductive coatings have a wide array of uses. Below are a few common applications:
- Electromagnetic shielding: One of the most common uses for conductive coatings is to shield sensitive electronic components from electromagnetic interference (EMI) or radio frequency interference (RFI). EMI and RFI can disrupt the normal operation of devices, so applying a conductive coating to parts of electronic devices helps maintain performance by blocking or redirecting these signals.
- Electrostatic discharge (ESD) protection: Electrostatic discharge can be a huge problem, especially in the world of electronics. A static shock can damage or destroy sensitive components like semiconductors. Conductive coatings are often used in products like circuit boards or plastic enclosures to prevent electrostatic build-up and protect sensitive electronics from potential harm.
- Corrosion resistance: Many conductive coatings, especially those made with materials like silver or carbon, also offer corrosion resistance. This is important in harsh environments where metal parts might be exposed to moisture, chemicals, or extreme temperatures.
- Antistatic coatings: Similar to ESD protection, antistatic coatings prevent static charges from accumulating on surfaces. These are often used in environments like clean rooms or during the manufacturing of sensitive electronic parts.
- Surface conductivity enhancement: In some cases, conductive coatings are applied to enhance the conductivity of a surface without the need for adding additional bulky components. This can improve the efficiency and performance of devices that rely on efficient electrical conductivity.
- EMI free space: Protection can be extended to entire spaces such as server rooms, hospital suites, and airplane cockpits. It may also be applied in 'quiet rooms' or high-security environments like prisons.
How are conductive coatings applied?
There are several methods used to apply conductive coatings, depending on the material being used, the surface, and the desired outcome. Here are the most common methods:
- Spray coating: A popular and versatile method, spray coating involves spraying the conductive coating material onto the surface to be treated. This is often used for large or complex-shaped parts.
- Electroplating: This is a method where a conductive material like silver or copper is deposited onto a substrate using an electrical current. Electroplating creates a thin, uniform layer of metal on the surface, which enhances its conductivity and provides other properties like corrosion resistance.
- Dip coating: In dip coating, the item to be coated is immersed in a bath of conductive coating material and then removed and dried. This method works well for coating flat surfaces or parts that can be fully submerged.
10 Key Terms to Know About Conductive Coatings
1. EMI (Electromagnetic Interference)
EMI refers to unwanted electromagnetic waves or signals that interfere with the normal operation of electronic devices. These waves can come from various sources, including natural sources (e.g. lightning) or other electronic devices. Conductive coatings can be used to shield devices from EMI, ensuring they function properly without disruptions.
2. RFI (Radio Frequency Interference)
Similar to EMI, RFI is interference caused by radio frequency signals. This is particularly relevant for devices that use radio signals, like wireless communication devices. Conductive coatings help block or absorb RFI, ensuring that these devices operate without external signal disruptions.
3. EMC (Electromagnetic Compatibility)
EMC refers to a device's ability to operate without causing interference to other devices and without being affected by external electromagnetic signals. Conductive coatings are used to enhance a device's EMC by providing shielding that protects it from EMI and RFI, and sometimes by preventing it from emitting electromagnetic signals that could interfere with other devices.
4. Electrostatic Discharge (ESD) Protection
ESD refers to the sudden flow of electricity between two objects caused by a buildup of static electricity. Conductive coatings provide a protective layer that helps dissipate the static charge, preventing damage to sensitive electronic components from ESD.
5. Conductivity
Conductivity is a measure of how easily a material allows the flow of electrical current. Materials with high conductivity, like metals, are ideal for conductive coatings, as they help facilitate the flow of electricity in electronic components.
6. Resistivity
Resistivity is the opposite of conductivity - it's a measure of how strongly a material resists the flow of electrical current. Conductive coatings typically have low resistivity, which allows them to conduct electricity efficiently. Low-resistance coatings are particularly important in applications like circuit boards or connectors.
7. Attenuation
Attenuation refers to the reduction in the strength of a signal as it travels through a medium. In the context of conductive coatings, attenuation is often used to describe how well the coating absorbs or blocks EMI or RFI signals, preventing interference and ensuring the proper functioning of the device.
8. Carbon-based coatings
Carbon-based coatings are made from materials like graphite and are known for their excellent conductivity and corrosion resistance. They are often used in applications where metal coatings may not be ideal, such as in flexible electronics or lightweight components.
9. Metal-based coatings
Silver is one of the most effective materials for conductive coatings due to its exceptional electrical conductivity and corrosion resistance. It is commonly used in high-performance applications such as circuit boards, connectors, and antennas. Copper is also widely used for its excellent conductivity and lower cost. Nickel, while not as conductive as silver or copper, offers good corrosion resistance and is often used as a protective or intermediate layer in multilayer coatings.
10. Shielding levels

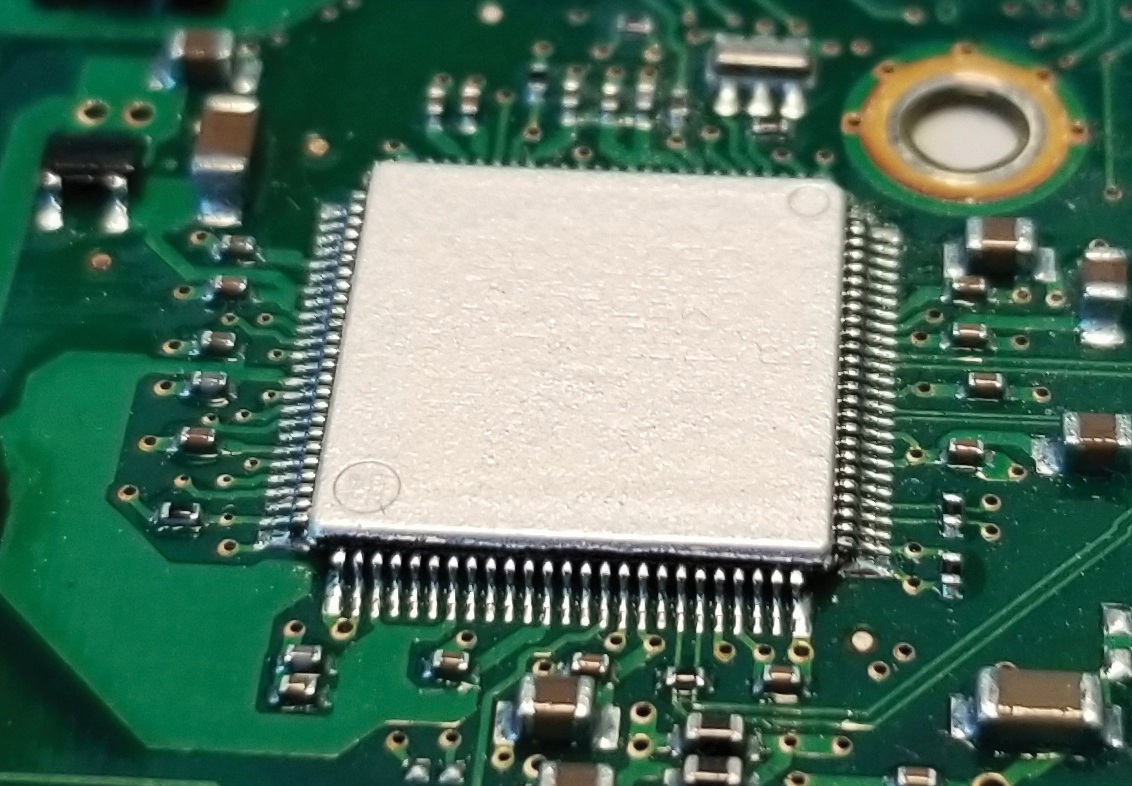

Shielding can be applied at various levels to protect against EMI/RFI interference. At the package level, individual components such as chips and ICs are coated with conductive materials to isolate them locally. At the board level, circuit boards receive a dielectric layer to prevent short circuits, followed by a conductive coating to reduce interference between components. For broader protection, shielding can be extended to entire devices or rooms.
Conductive coatings are incredibly versatile and essential in a wide range of industries. From providing electromagnetic shielding to preventing electrostatic discharge, these coatings help ensure that electronic devices function reliably and safely. Whether you're involved in electronics manufacturing or just looking to improve the performance of your devices, knowing how and why conductive coatings are used can give you a significant edge in designing and maintaining advanced electronic systems.
