Conformal coating plays a vital role in protecting printed circuit boards (PCBs) from environmental hazards such as moisture, dust, chemicals, salt spray, and temperature extremes. As electronic devices become increasingly sophisticated and are deployed in harsher operating environments, ensuring the quality of conformal coating application has become more important than ever.
While selecting the correct coating material is essential, the effectiveness of a conformal coating ultimately depends on the quality of the application process and the inspection procedures used to verify coverage and performance. Poor coating quality can lead to premature product failures, corrosion, electrical leakage, and costly warranty claims.
This guide explores the key quality assurance and inspection processes used throughout conformal coating operations, from pre-coating preparation to final acceptance testing.
Understanding Conformal Coating Quality Requirements
A high-quality conformal coating should provide complete and consistent protection without interfering with the functionality of the PCB assembly. To achieve this, manufacturers must control several critical quality characteristics.
Coverage Consistency
The coating should uniformly cover all designated surfaces while avoiding areas that must remain free from coating, such as connectors, test points, switches, and heat sinks. Inconsistent coverage can create weak points where contaminants can penetrate and damage sensitive circuitry.
Coating Thickness Control
Maintaining the correct coating thickness is essential. If the coating is too thin, it may not provide adequate protection. If it is too thick, issues such as cracking, solvent entrapment, or thermal management problems may occur.
Adhesion Performance
Good adhesion between the coating and substrate is critical for long-term reliability. Poor adhesion can lead to peeling, delamination, or moisture ingress over time.
Environmental Protection
The coating must withstand the environmental conditions for which the product is designed, including humidity, temperature cycling, vibration, chemical exposure, and salt-laden atmospheres.
Industry Standards for Conformal Coating Inspection
Quality inspection procedures are typically guided by recognised industry standards.
IPC-CC-830
IPC-CC-830 is one of the most widely adopted standards for qualifying and testing conformal coating materials. It defines performance requirements and testing criteria for coating systems used in electronics manufacturing.
IPC-A-610
IPC-A-610 provides acceptance criteria for electronic assemblies, including guidance on conformal coating appearance, coverage, and workmanship.
IPC J-STD-001
This standard addresses electronic assembly requirements and includes provisions relating to conformal coating application and inspection.
There are a number of other industry standards including military specific, aerospace, and LED applications.
By aligning inspection activities with these standards, manufacturers can establish consistent quality expectations and improve customer confidence.
Pre-Coating Quality Inspection Process
Quality inspection begins long before coating is applied.
PCB Cleanliness Verification
One of the leading causes of conformal coating failure is contamination. Residual flux, oils, fingerprints, dust, and ionic residues can prevent proper adhesion and cause defects such as dewetting or fish eyes.
Before coating, boards should undergo cleanliness verification through visual inspection and, where required, ionic contamination testing.
Masking Verification
Areas that must remain coating-free should be properly masked before application. Incorrect masking can lead to costly rework and functionality issues.
Inspectors should verify masking integrity before boards enter the coating process.
Conformal Coating Application Quality Controls
Process control is essential to achieving repeatable coating quality.
Environmental Controls
Temperature and humidity can significantly affect coating performance. Excessive humidity may cause curing problems, while temperature fluctuations can impact coating viscosity and flow characteristics.
At Chiltern Connections, we maintain controlled coating environments to minimise process variation.
Material Control
Coating materials should be stored and handled according to supplier recommendations. Key parameters include:
- Shelf life monitoring
- Viscosity verification
- Mixing procedures
- Batch traceability
Equipment Calibration
Whether using spray systems, selective coating machines, or dip coating equipment, regular calibration is necessary to ensure consistent coating thickness and coverage.
Documented calibration procedures form an important part of quality management systems.
Conformal Coating Inspection Methods
Once coating has been applied, inspection activities verify that quality requirements have been met.
Visual Inspection
Traditional visual inspection remains one of the most effective methods for identifying coating defects.
Inspectors assess:
- Coverage completeness
- Coating uniformity
- Surface appearance
- Masking effectiveness
- Defect presence
Visual inspection requires trained personnel who understand coating characteristics and acceptance criteria. Visual inspection can be aided through use of magnifying glass or digital magnification using specialist equipment.

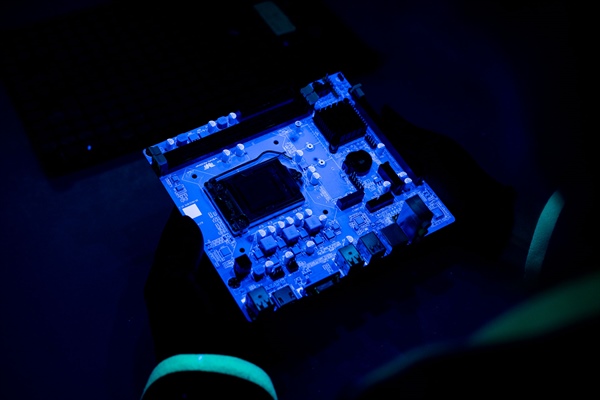

UV Light Inspection
Many conformal coatings contain fluorescent tracers that become visible under ultraviolet light.
UV inspection provides several advantages:
- Improved visibility of coating coverage
- Faster defect detection
- Easier identification of missed areas
- Verification of selective coating boundaries
This method is widely used in electronics manufacturing environments.
Common Conformal Coating Defects and Their Causes
Understanding defects helps inspectors identify issues quickly and implement corrective actions.
Insufficient Coverage
Incomplete coating leaves portions of the PCB vulnerable to environmental exposure.
Common causes include:
- Incorrect spray settings
- Poor fixture design
- Programming errors in selective coating equipment
- Shadowing effects from tall components
Excessive Coating Thickness
Over-application may result in:
- Cracking
- Extended cure times
- Solvent entrapment
- Reduced reliability
Thickness monitoring helps prevent these issues.
Bubbles and Voids
Entrapped air or solvents can create bubbles within the coating layer.
Potential causes include:
- Excessive application speed
- Improper curing conditions
- Material contamination
- Incorrect viscosity
Dewetting and Fish Eyes
Dewetting occurs when the coating pulls away from the surface, leaving exposed areas.
Typical causes include:
- Surface contamination
- Silicone contamination
- Poor cleaning processes
- Incompatible materials
Cracking and Delamination
These failures often appear after environmental testing or field use.
Contributing factors include:
- Excessive coating thickness
- Thermal stress
- Poor adhesion
- Incompatible substrate materials
Conformal Coating Acceptance Criteria
A PCB assembly should only be released after all inspection requirements have been satisfied.
Acceptance criteria typically address:
- Complete coverage of designated areas
- Proper coating thickness
- Absence of major defects
- Correct masking performance
- Adequate curing
- Compliance with customer specifications
Inspection records should be maintained to support traceability and regulatory requirements.
Rework and Repair Inspection
Even well-controlled processes occasionally require rework.
Following repair, the affected area should undergo the same inspection and verification procedures as the original application process.
Maintain Complete Traceability
Traceability enables manufacturers to link inspection results, material batches, process settings, and production records for future analysis.
Conclusion
Conformal coating quality depends on far more than simply applying a protective layer to a PCB. Effective quality assurance requires a comprehensive approach that includes surface preparation, process control, inspection, testing, and ongoing process improvement.
By implementing robust inspection procedures aligned with recognised standards such as IPC-CC-830 and IPC-A-610, manufacturers can improve product reliability, reduce field failures, and ensure consistent protection against environmental hazards.
A well-designed conformal coating inspection programme not only protects the PCB but also safeguards product performance, customer satisfaction, and brand reputation.
Frequently Asked Questions (FAQ) – Quality and Inspection Processes for Conformal Coating on PCBs
1. What is conformal coating and why is it used on PCBs?
Conformal coating is a protective polymer layer applied to printed circuit boards (PCBs) to shield them from moisture, dust, chemicals, salt spray, and temperature extremes. It helps improve reliability and extends product lifespan.
2. Why is the quality of conformal coating important?
Poor coating quality can lead to corrosion, electrical leakage, premature product failures, and expensive warranty claims. High-quality application ensures long-term protection and performance.
3. What are the key quality requirements for conformal coating?
Key requirements include consistent coverage, correct coating thickness, strong adhesion to the PCB surface, and effective environmental protection against operating conditions.
4. Why is coating thickness control important?
A coating that is too thin may not provide adequate protection, while excessive thickness can cause cracking, solvent entrapment, curing issues, and thermal management problems.
5. What industry standards are commonly used for conformal coating inspection?
The most widely recognised standards include IPC-CC-830 for coating material qualification, IPC-A-610 for assembly acceptance criteria, and IPC J-STD-001 for electronic assembly requirements.
6. Why must PCB cleanliness be verified before coating?
Contaminants such as flux residues, oils, fingerprints, dust, and ionic contamination can prevent proper coating adhesion and lead to defects such as dewetting and fish eyes.
7. What is masking verification and why is it necessary?
Masking verification ensures areas such as connectors, switches, test points, and heat sinks remain free from coating. Proper masking prevents functionality issues and reduces rework costs.
8. How do environmental conditions affect coating quality?
Temperature and humidity can significantly impact coating performance. High humidity may affect curing, while temperature variations can change coating viscosity and application characteristics.
9. Why is material control important during the coating process?
Proper material control includes monitoring shelf life, verifying viscosity, following mixing procedures, and maintaining batch traceability to ensure consistent coating performance.
10. What role does equipment calibration play in coating quality?
Regular calibration of spray systems, selective coating machines, and dip coating equipment helps ensure consistent coating thickness, uniform coverage, and repeatable process results.
11. What is checked during visual inspection?
Inspectors assess coating coverage, uniformity, surface appearance, masking effectiveness, and the presence of defects. Visual inspection may be enhanced using magnification tools and UV lighting.
12. What are the benefits of UV light inspection?
UV inspection makes fluorescent coatings easier to see, helping identify missed areas, verify coating boundaries, improve coverage assessment, and speed up defect detection.
13. What are the most common conformal coating defects?
Common defects include insufficient coverage, excessive coating thickness, bubbles, voids, dewetting, fish eyes, cracking, and delamination.
14. What causes dewetting and fish-eye defects?
These defects are typically caused by surface contamination, silicone contamination, poor cleaning processes, or incompatible materials that prevent the coating from adhering evenly.
15. What acceptance criteria must be met before a PCB is released?
The PCB must demonstrate complete coverage of specified areas, correct coating thickness, adequate curing, effective masking, freedom from major defects, and compliance with customer specifications. Inspection records should also be maintained for traceability.
